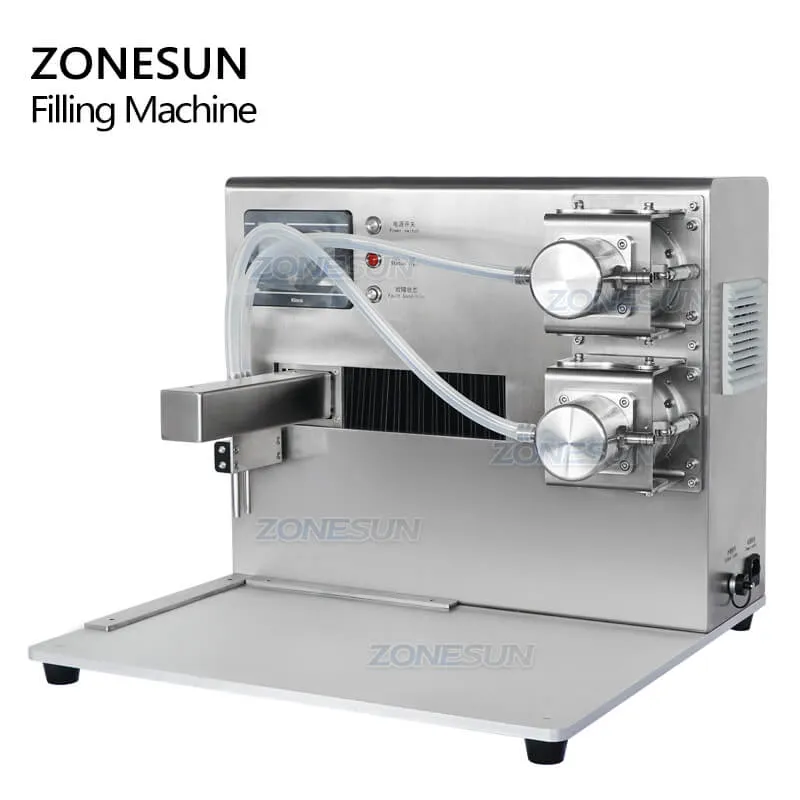

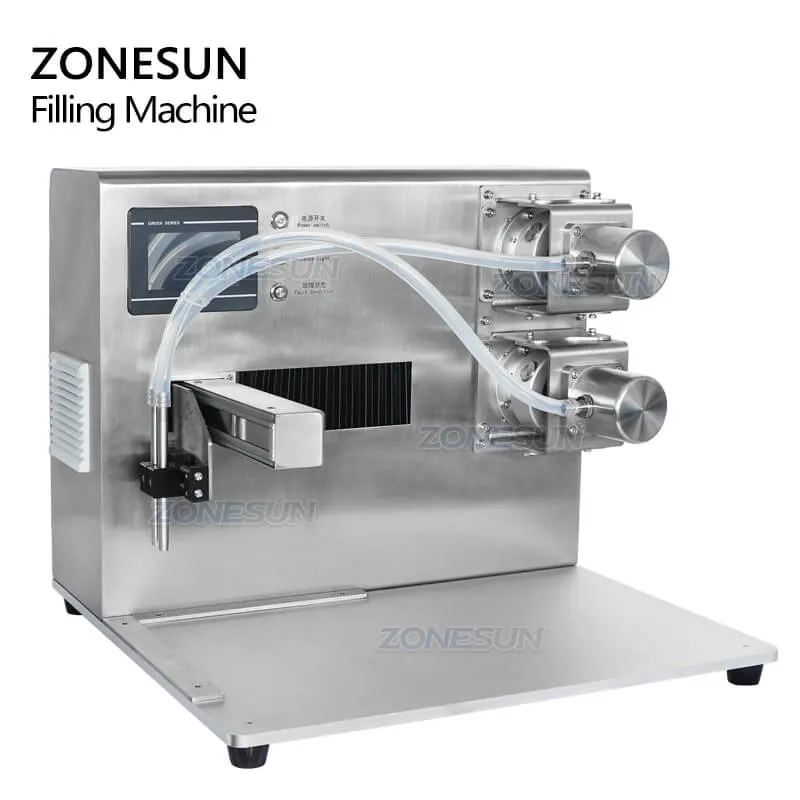

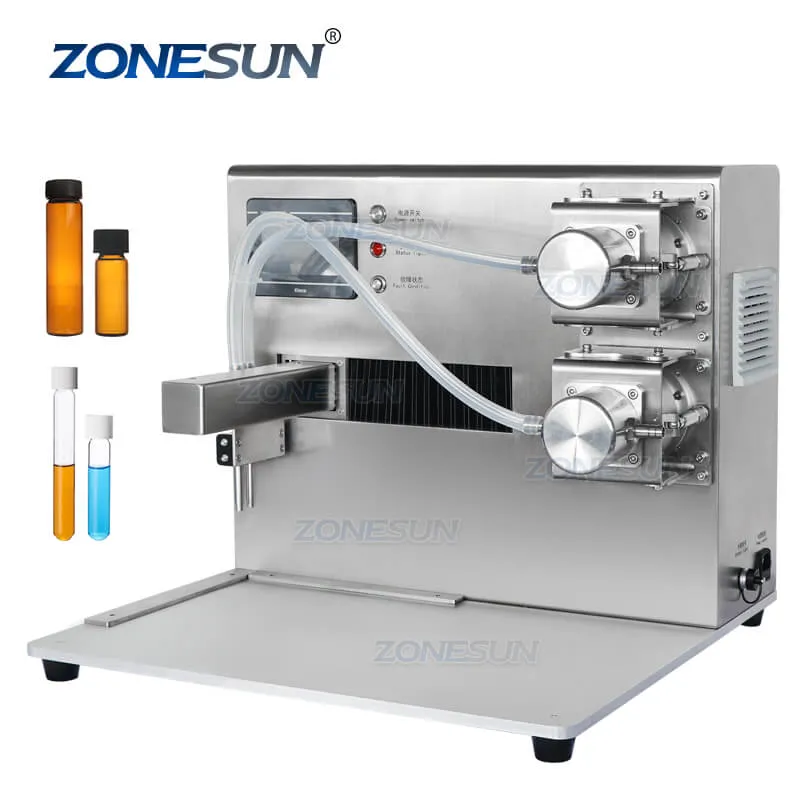

This machine is suitable for precision quantitative filling of liquid such as biological reagents,injections,advanced cosmetics,fragrances.It is widely used in cosmetics,chemicals industries.
Parameter
- Machine model:ZS-YTXY2
- Machine voltage:110/220V 50-60HZ
- Filling accuracy:About 0.25%
- Working speed:0-100 bottles/min
- Filling range:0.2-1.5ml/0.3-2.8ml/0.6-6ml/1-12ml/2-25ml
- Moving distance:230mm*200mm(X*Y)
- Machine size:520*470*435mm(L*W*H)

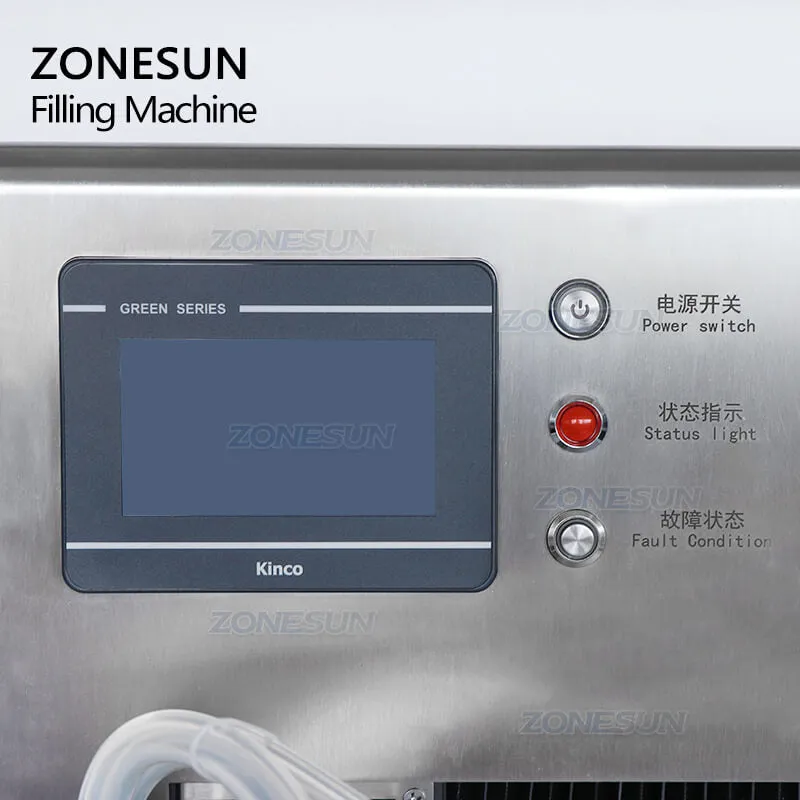

Equipped with touch screen control panel,this makes working parameter is visual and it will more convenient to test and adjust the machine.Different kinds of operating language can be customized according to operation need.
The filling nozzle will move in different directions during filling work and the moving distance can be customized according to production need. This can reduce production error and prevent from spreading out liquid during working.

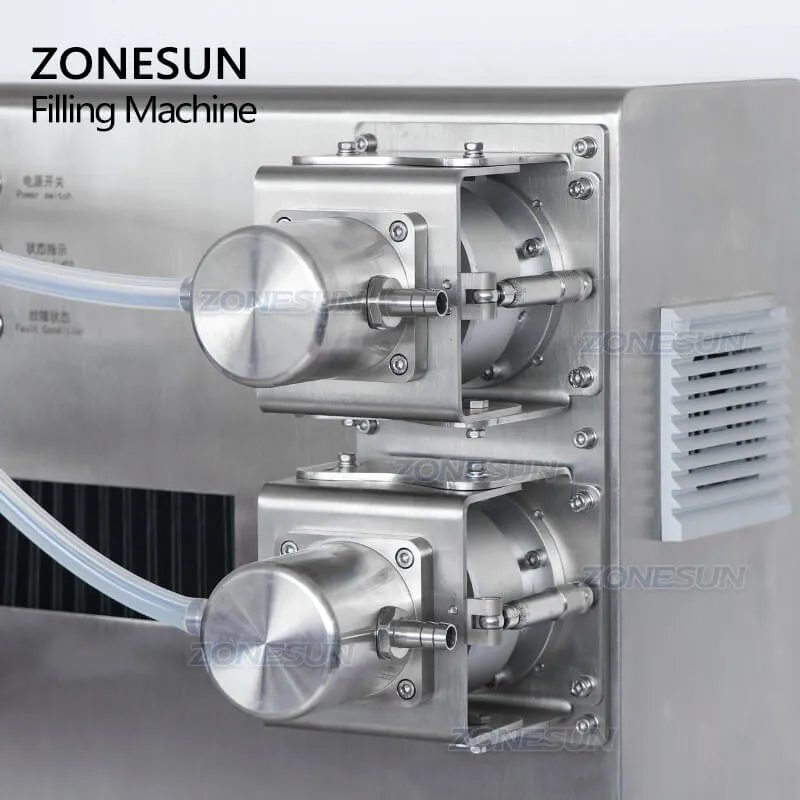

The advantage of ceramic plunger pump is high filling accuracy.It is suitable for filling chemical reagent or advanced cosmetics.Different filling range can be chosen according to production need.

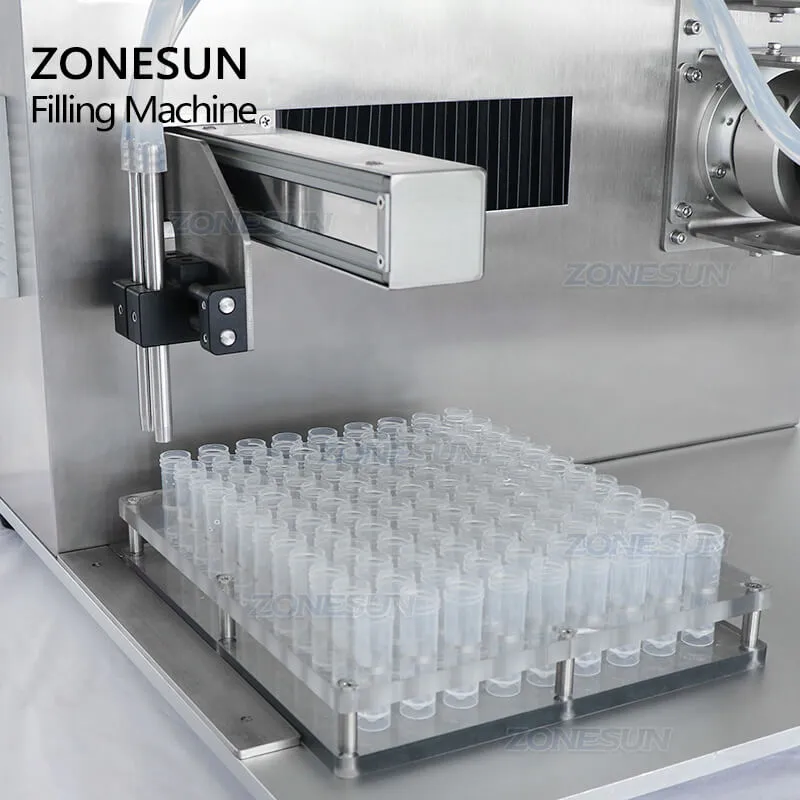

The bottle holder is customized according to bottle height and diameter,this can be used to holding bottles and ensures the filling work can be processed smoothly,improves production accuracy.
