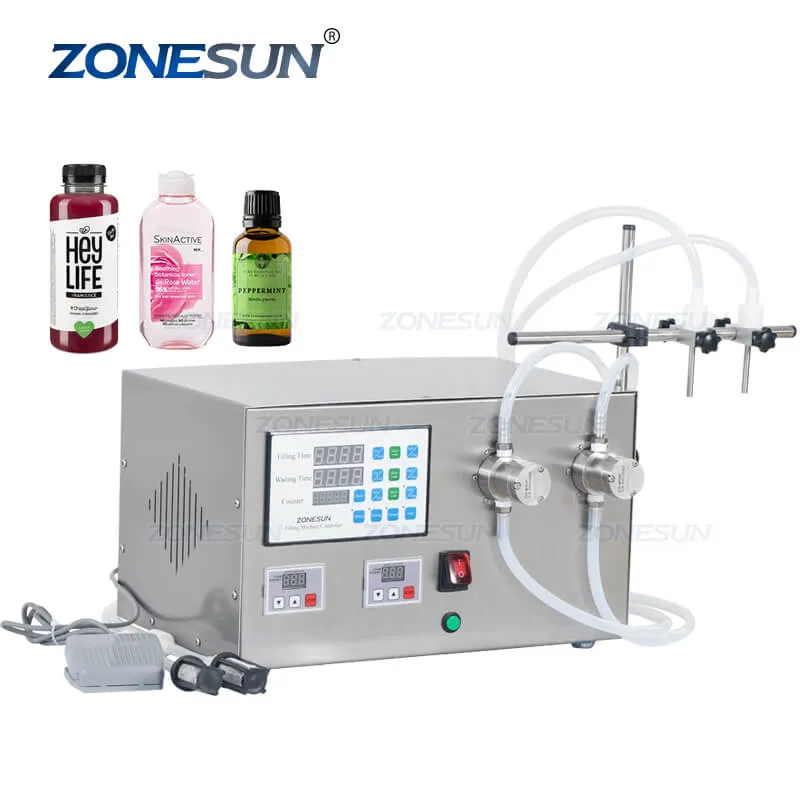

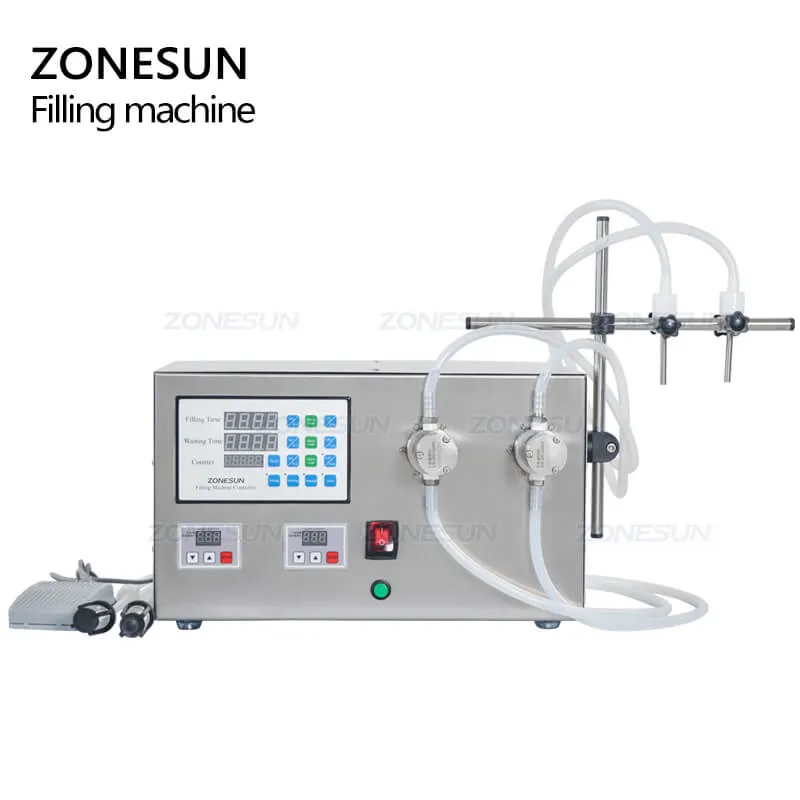

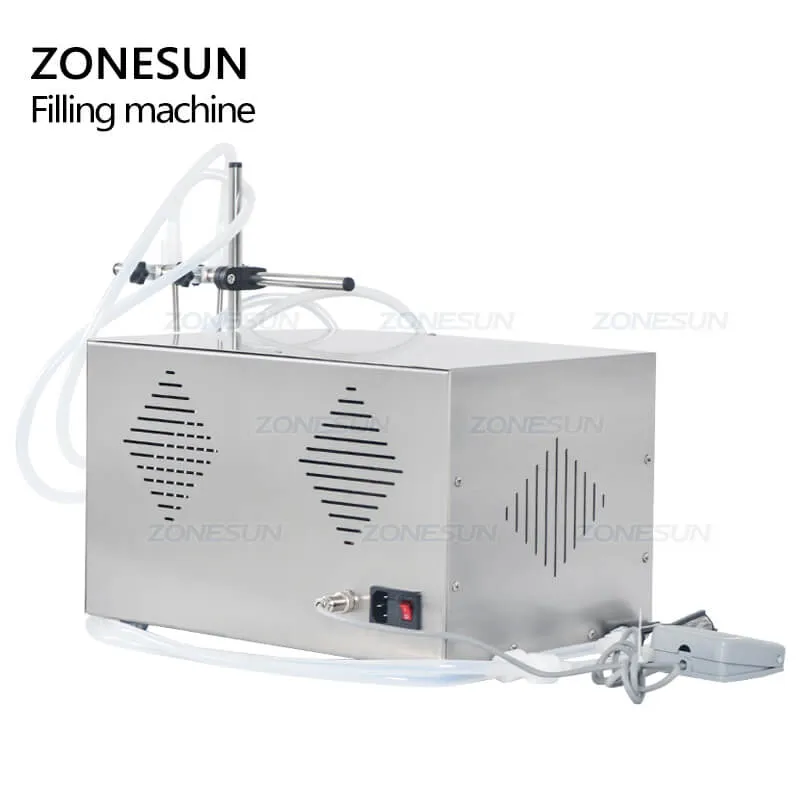

This kind of semi automatic filling machine is equipped with stainless steel magnetic pump,according to pump material,they can be divided into 304 and 316 magnetic pump.The 316 magnetic pump is suitable for filling corrosive liquid like care solution.The magnetic pump filling machine has the advantage that it can fill liquid more accurately,suitable for filling small volume products like perfume,essential oil.it is widely used in beverage,cosmetics, food,and daily chemical industries.

Parameter

• Machine Model:ZS-YTMP2S
• Voltage/Power:AC 220V/110V 100W
• Pump Material:316 Stainless Steel
• Filling Range:10-6000ML*2
• Max Flow Rate:6L/min*2
• Max Suck Distance:2 meter
• Anti-leaking Function:Available
• Memory Function:Available
• Filling Nozzle(OD Size):4mm and 6mm
• Gross weight/Net weight:About 10kg/8.6kg
• Machine Size:About 403*255*250mm
• Package Size:About 470*415*310mm

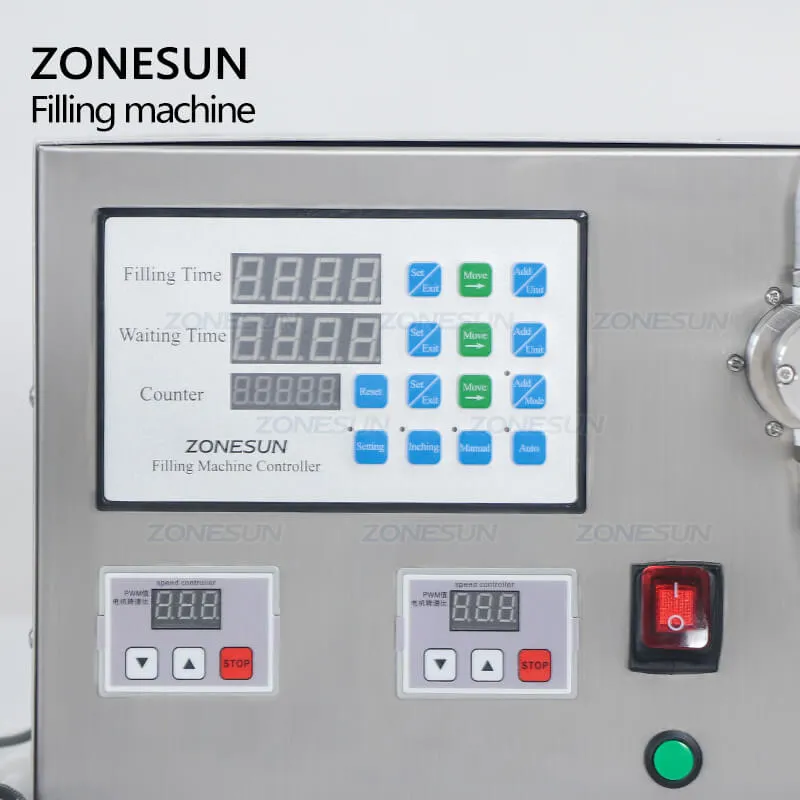

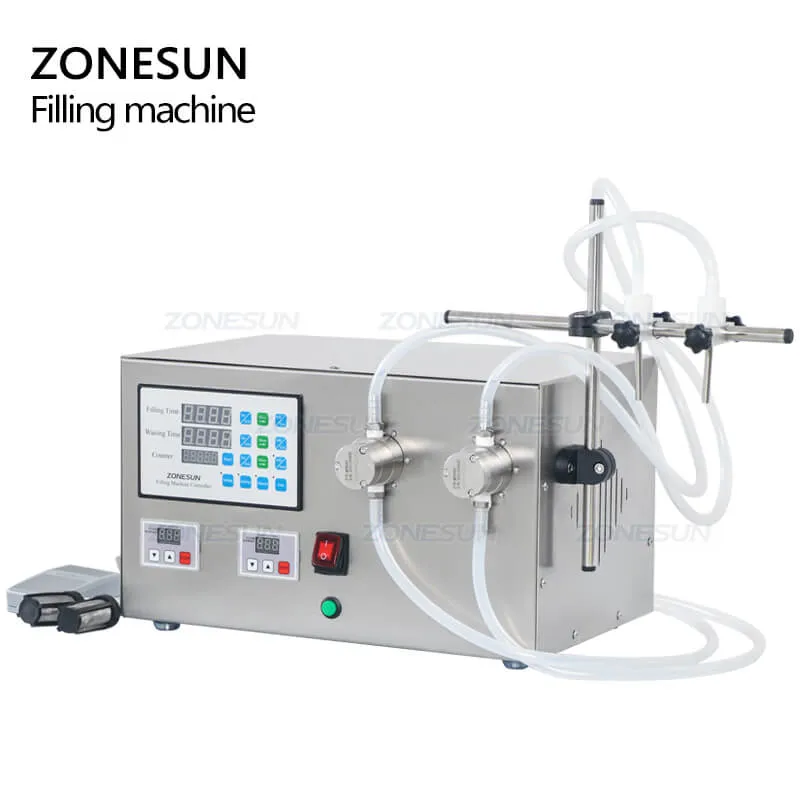

Through digital panel, it's easy toset parameters like filling time andspeed. It has inching button, which is good for testing machine.The quantity of filled bottles willshow on panel, visual and accu-rate.

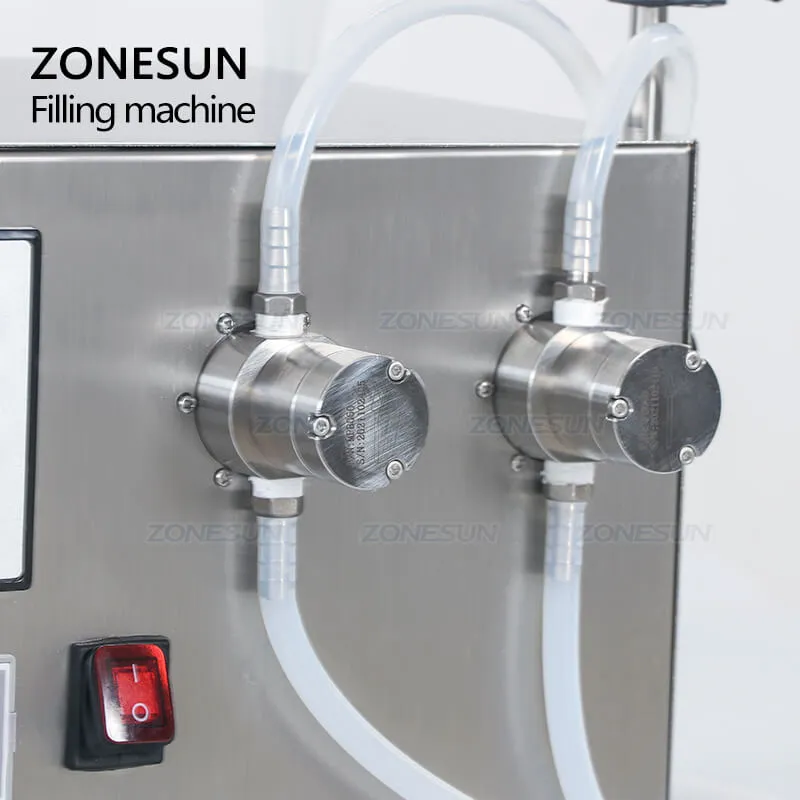

The magnetic pumps have thefeature of high filling precision andhigh temperature resistance. Itcan be used for 3≤PH≤9 weakly corrosive liquid.

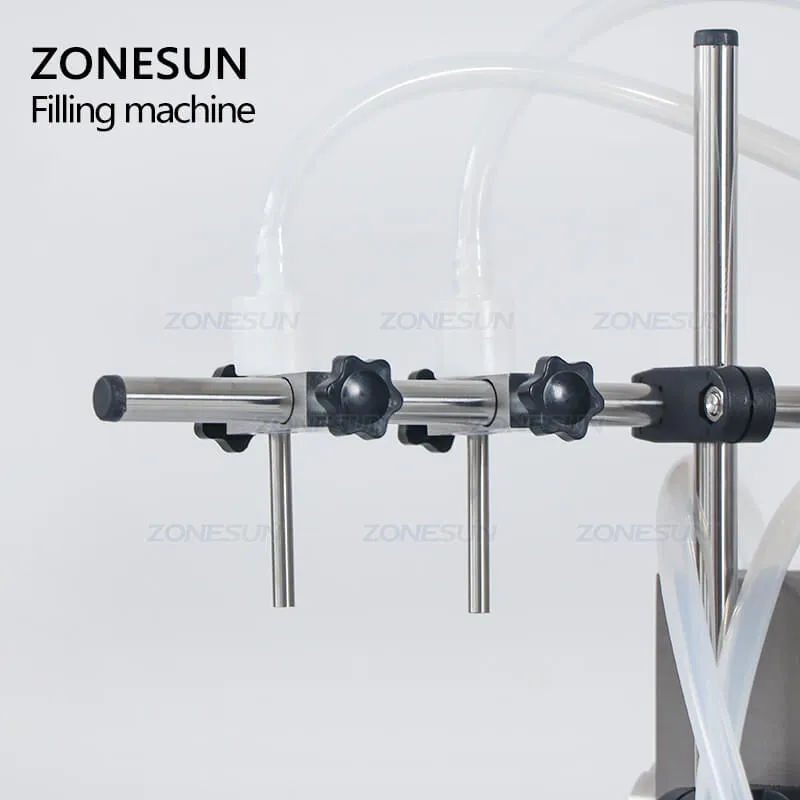

The filling speed of 2 heads can be adjusted separately , easy to operate.Different sizes of filling heads can be offered if you need.

This machine has automatic mode and manual mode, which can be switched freely. In manual mode,you can press pedal switch to control machine to run. Easy and convenient.

The high-quality filters can filter impurities in the liquid, ensuring production quality and preventing the pumps from getting clogged.
