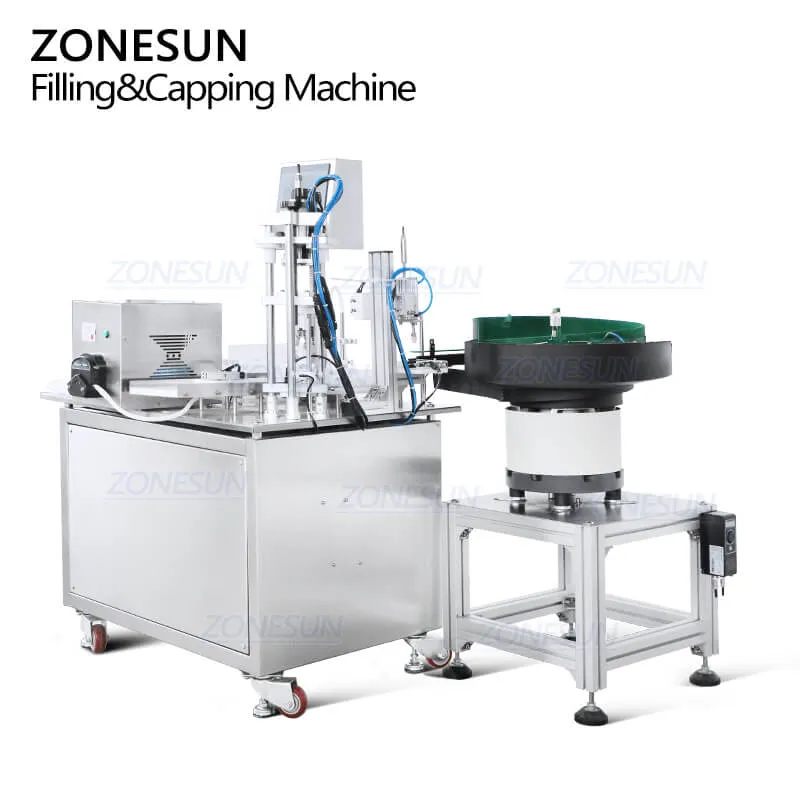

This machine has the function of sorting bottles,filling liquid,tighten bottle caps.It is equipped with peristaltic pump,which fills liquid accurately.It is suitable for essential oil,perfume etc.
Parameter
- Product model:ZS-AFC15
- Voltage:220V-60Hz
- Power:1000W
- Filling Pump:Peristaltic Pump
- Maximum flow rate:2.4L/min
- Working speed:10-35 bottles/min (based on liquid 50ml)
- |Working pressure:4-6Kg/MF
- Maximum suction lift:2M
- Repeat error:±0.5%
- Power-off memory:yes
- Discharge leakage prevention:yes
- Vibration bowl sorter:About 600*600* 1000mm
- Machine size:About 1210*830* 1360mm
The bottle sorting structure can make bottles be in order before filling and capping work,it is customized according to bottle size,improves working efficiency.

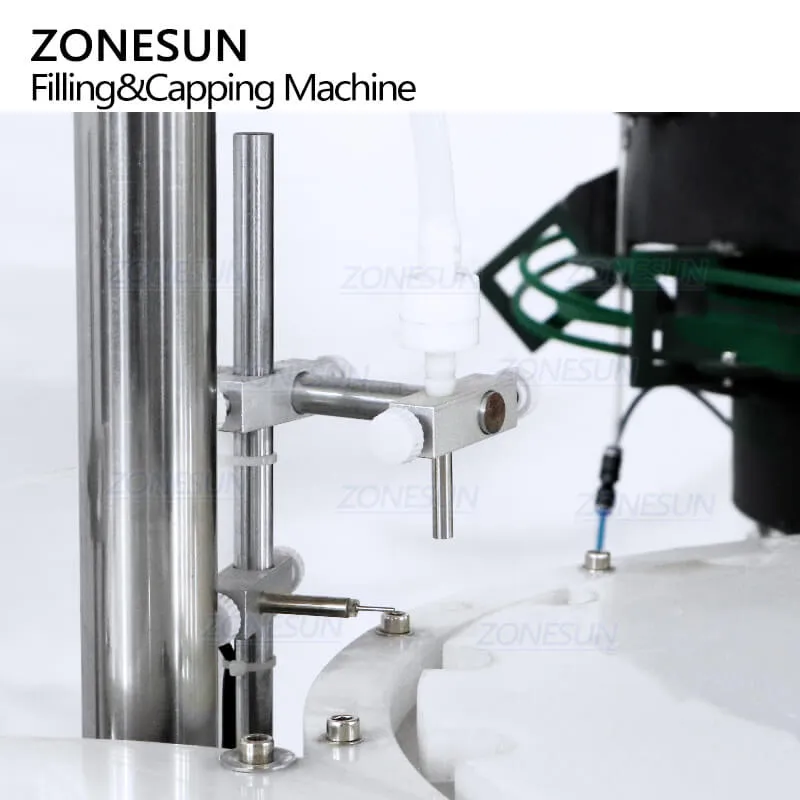

Multiple filling nozzles can be customized as production need.The filling nozzles size can be changed as sizes of bottle opening mouth,prevent liquid spraying out during filling.

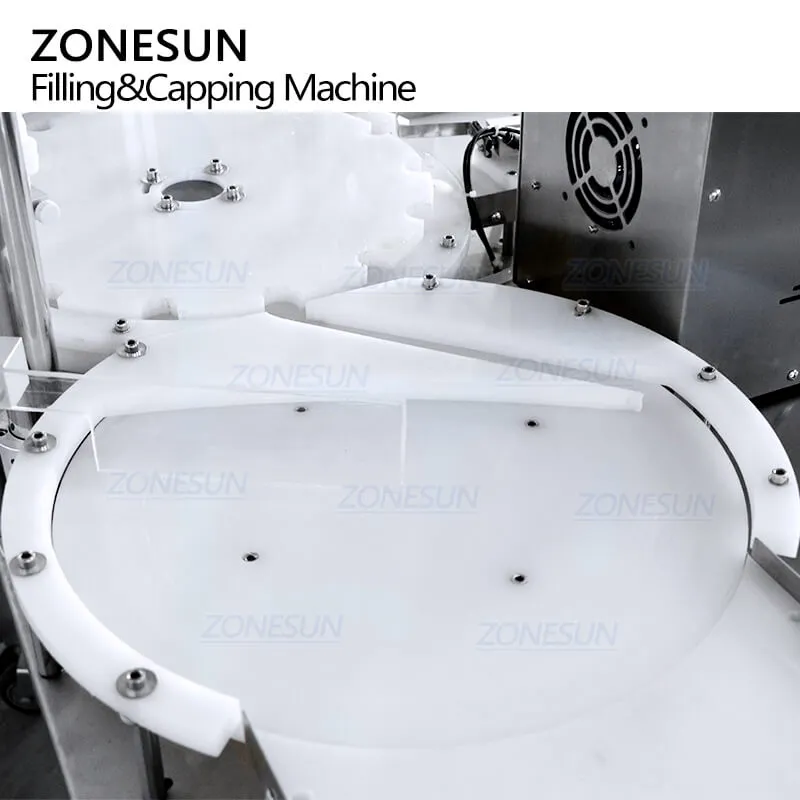

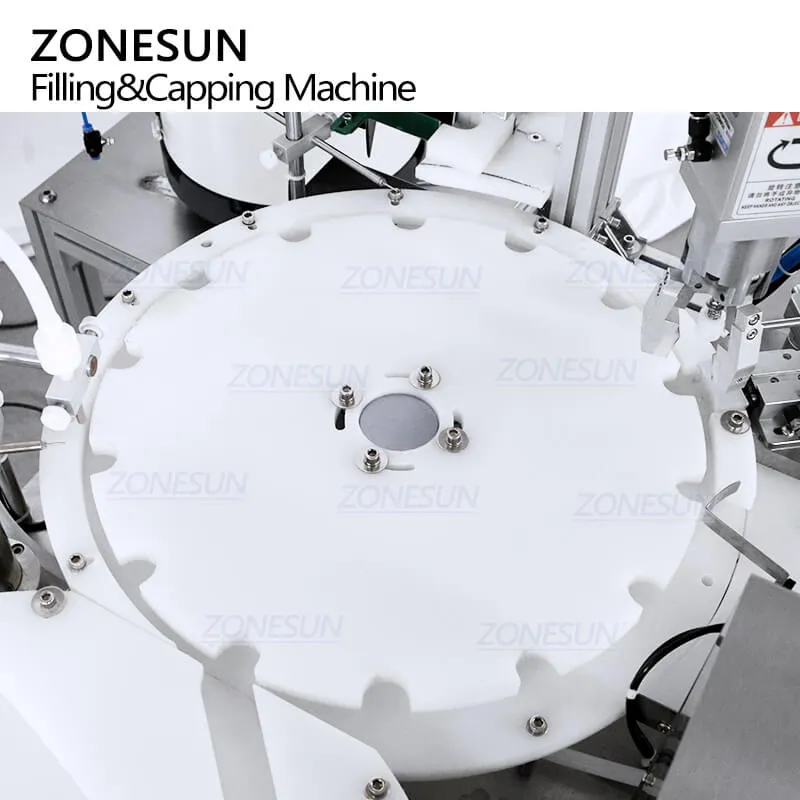

The rotary plate is customized according to bottle size.It can prevent bottles from falling down during transporting.

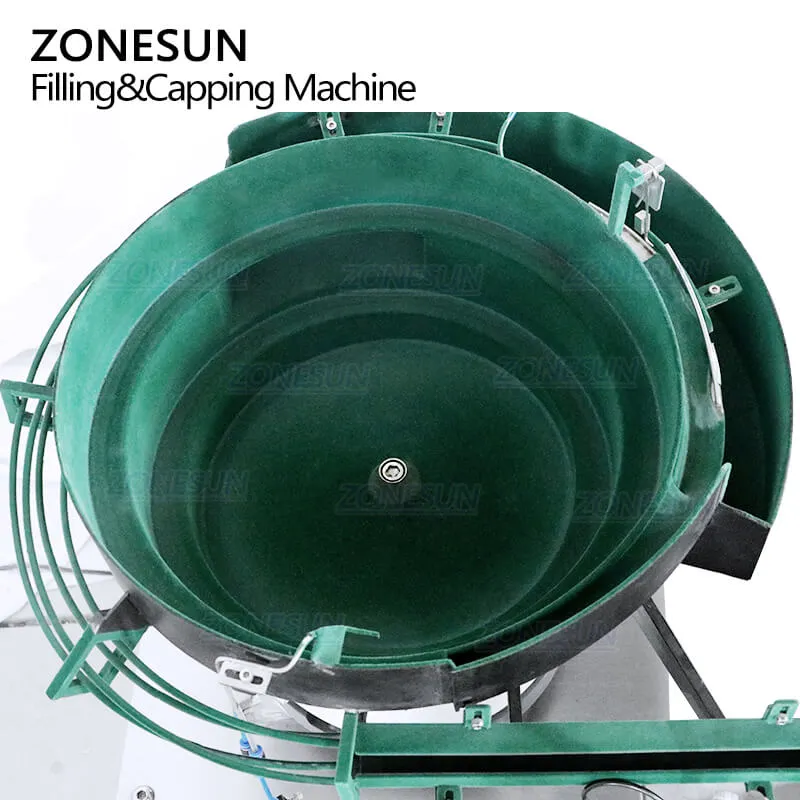

The vibratory bowl sorter is designed for making bottle caps be in order before capping work,this is customized according to cap size,reduce production error.

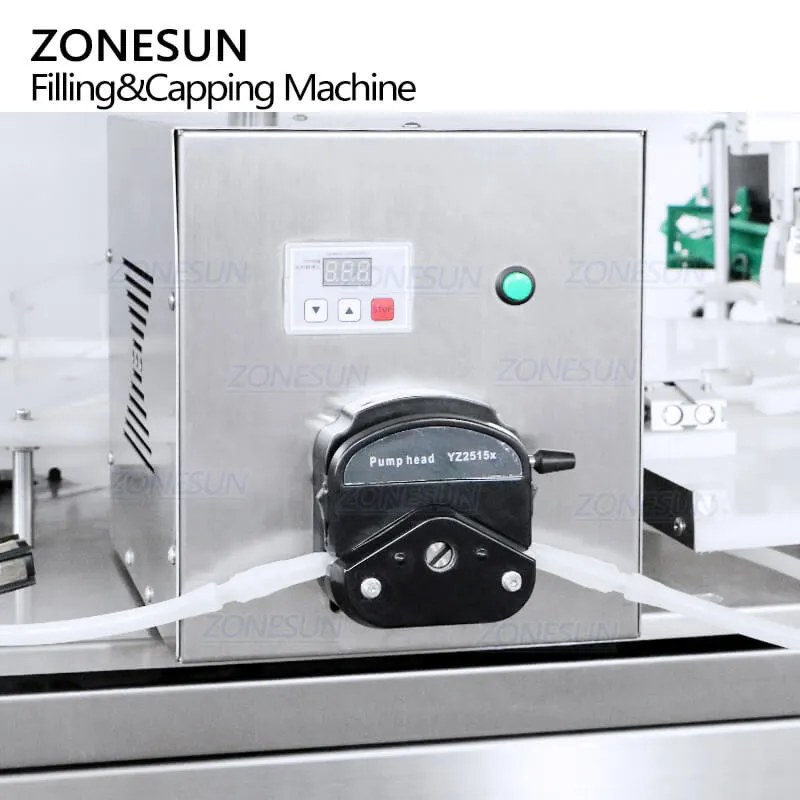

Equipped with preristaltic pump,the liquid will not pass through pump during filling,and this kind of filling pump has high filling accuracy.

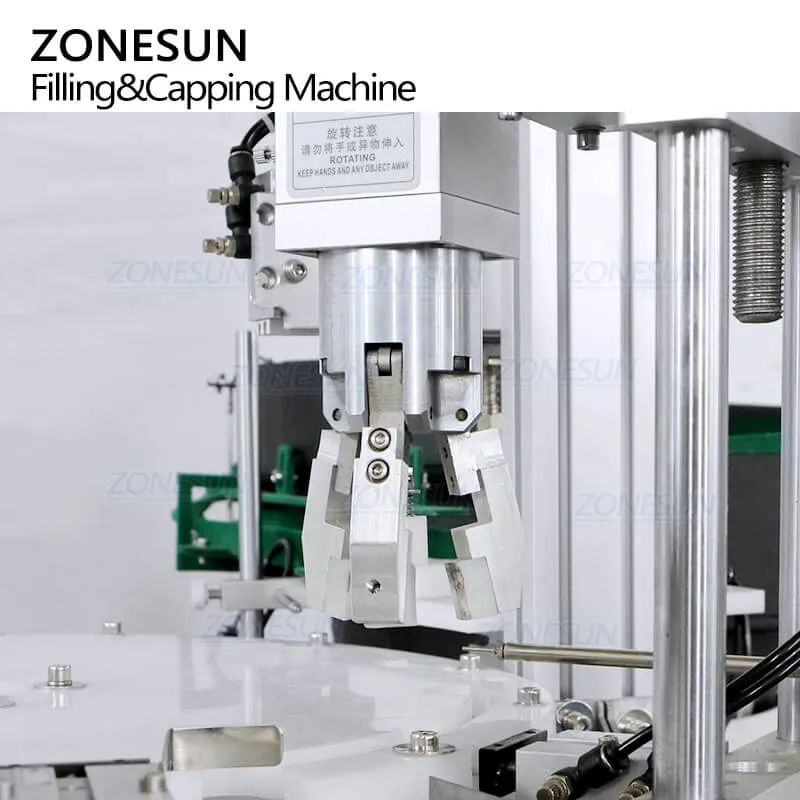

High quality capping structure,it is good for bottle caps with screw threads like dropper bottles,spray bottles and screw-on bottle caps.
