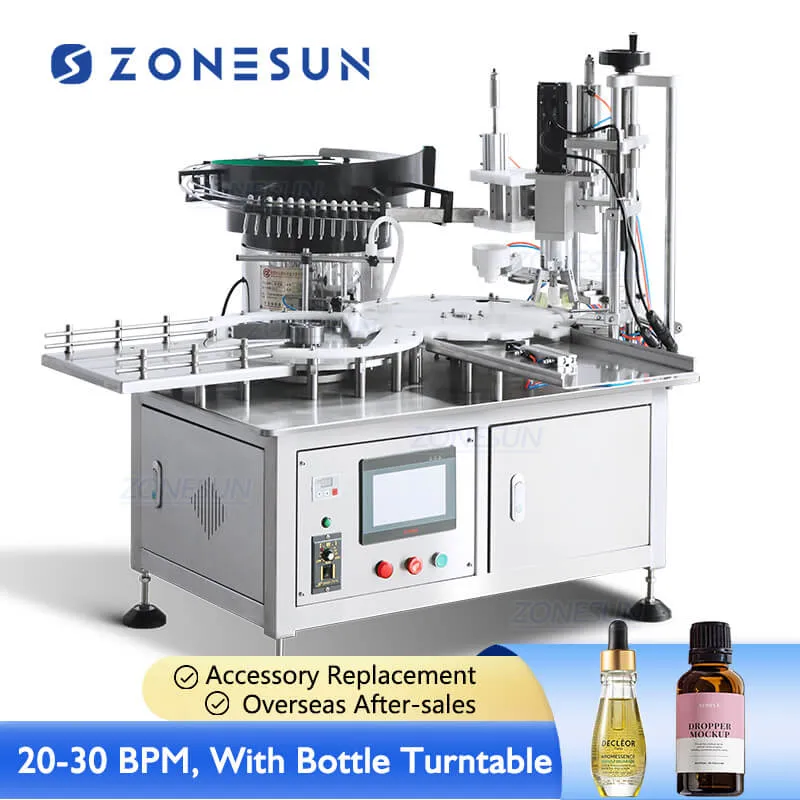

This desktop automatic filling capping machine can arrange bottles before filling work,fill liquid,feed bottle caps,and tighten bottle caps automatically.It is widely used in daily chemical,cosmetics industries
Parameter
- Machine Model:ZS-AFC7A
- Machine power:1000W
- Machine voltage:110/220V 50-60HZ
- Filling pump:Magnetic Pump
- Recommended filling range:10-100ml
- Pump maximum flow rate:4L/min
- Suitable bottle height:About 30-60mm
- Suitable bottle diameter:About 20-50mm
- Suitable cover size:H≤10-30mm φ≤20-50mm
- Working speed:About 20-30 bottles/min(based on bottle size)
- Package size:About 1500*900*1250mm (Machine)
- About 700*600*1500mm (vibratory Bowl Sorter)
- Package weight:About 180kg (Machine)
- About 100kg (Vibratory Bowl Sorter)

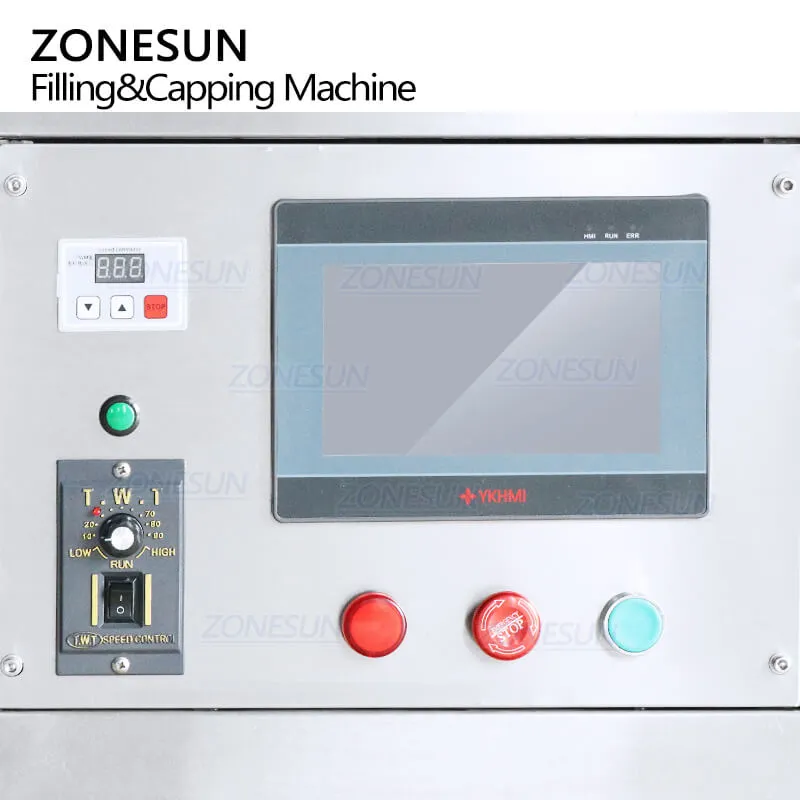

The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.
This machine is equipped with bottle unscrambling structure,which can make bottles be in order before entering the star wheel.This saves working labor.

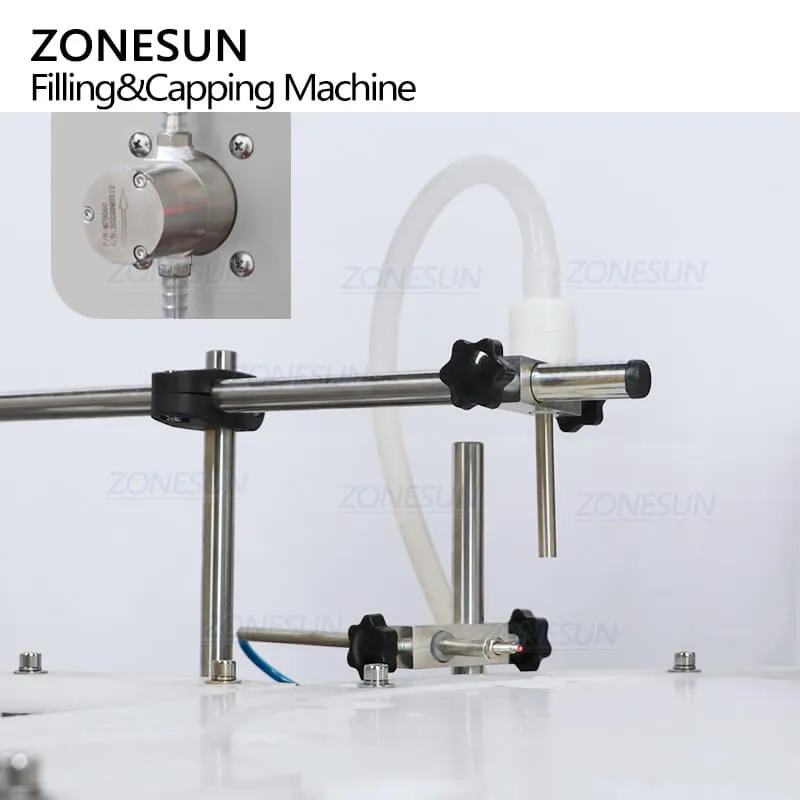

The size of filling nozzle can be changed according to bottle opening mouth,this can prevent from spraying liquid out. Multiple filling nozzles can be customized as production need.The 316 stianless steel magetic pump has high filling accuracy and suitable for low viscosity liquid.

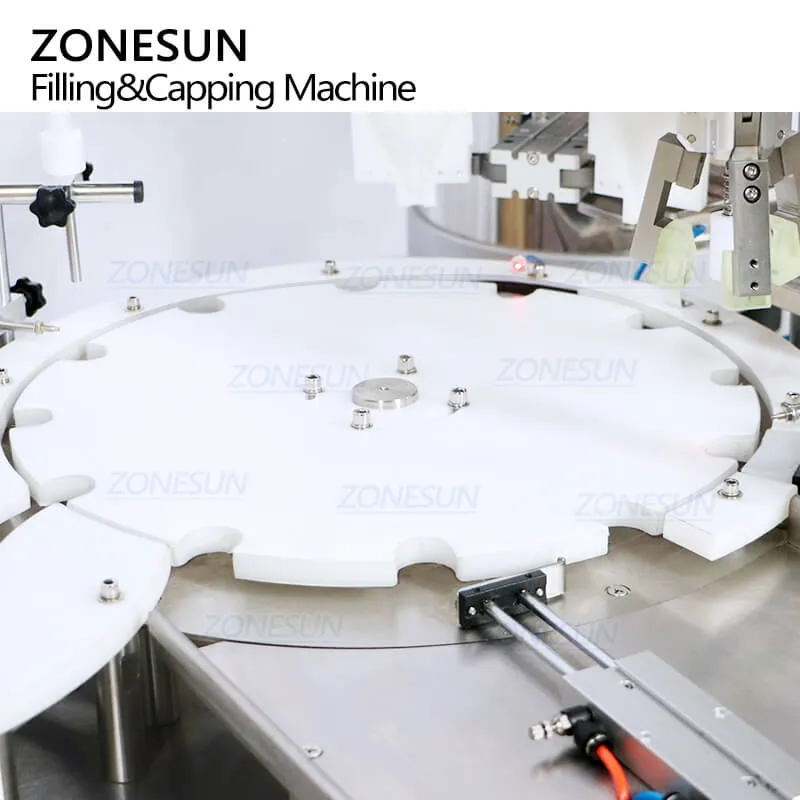

The star wheel is customized according to bottle size.It can transport bottles to the next working process.There are electric eyes on each working structure, which can detect passing by bottles and control the machine to realize the automated work.

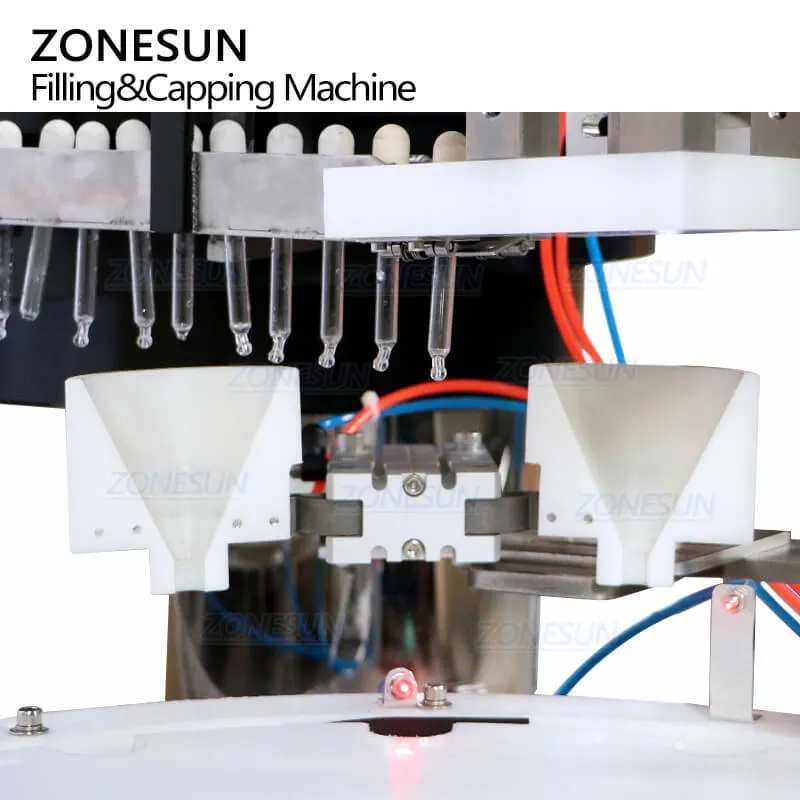

The cap feeding structure will drop bottles,the guide housing will help to make caps can be dropped into bottles correctly,this can reduce production labor.

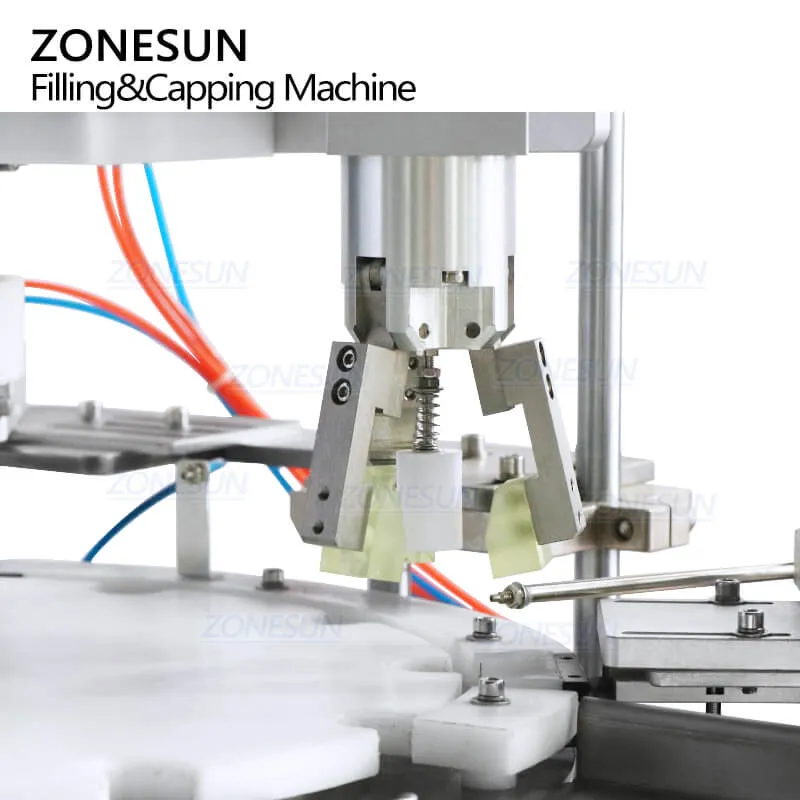

The torsion of capping structure can be controlled as production need.This kind of capping strcuture is suitable for bottle caps with screw threads.The bottle pushing structure is used to push bottle out in time,improves working efficiency.
