SPECIFICATIONS
ZigBee3.0 Smart WIFI Thermostatic Radiator Valve Actuator TRV Programmable Temperature Controller Alexa Tuya Google Assistant
Working temperature: -10℃-40℃
Working environment: Indoor
Wattage: 0.6
WIFI: 2.4Ghz
Temperature range: 5℃-30℃
Origin: CN(Origin)
Model Number: TV-01
MAX travel: 6mm
Letter Of Agreement: Zigbee 3.0
Hub Communication Distance: 60M
Device weight: 190g
Device size: 55.3*54*98.3mm
Degree of protection: lp20
Constant temperature tolerance: ±0.7℃

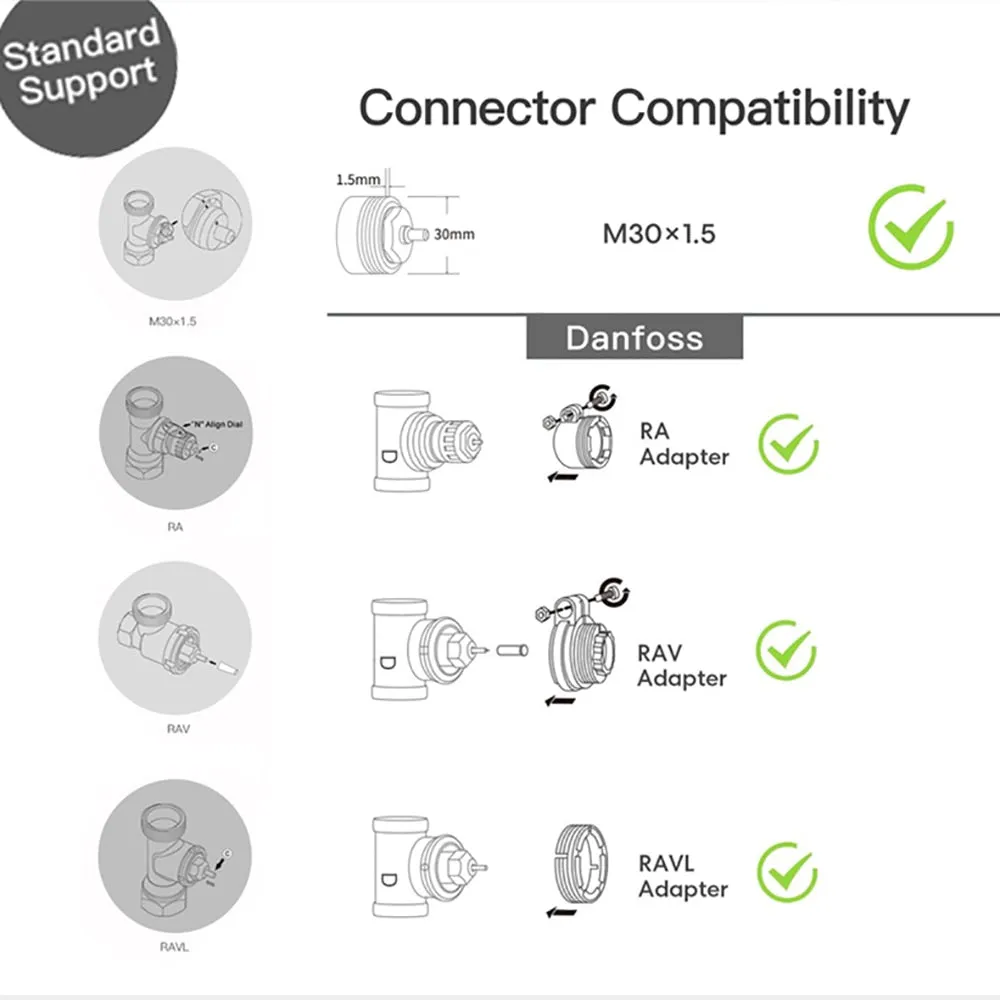

Connection: M30x1.5mm
Commercial name: Thermostat radiator valve
Certification: CE/ROHS
Certification: CE
Brand Name: Giexperience
Battery Life: 1.5-2.5 Years
Battery: 2*1.5V LR6/mignon/AA

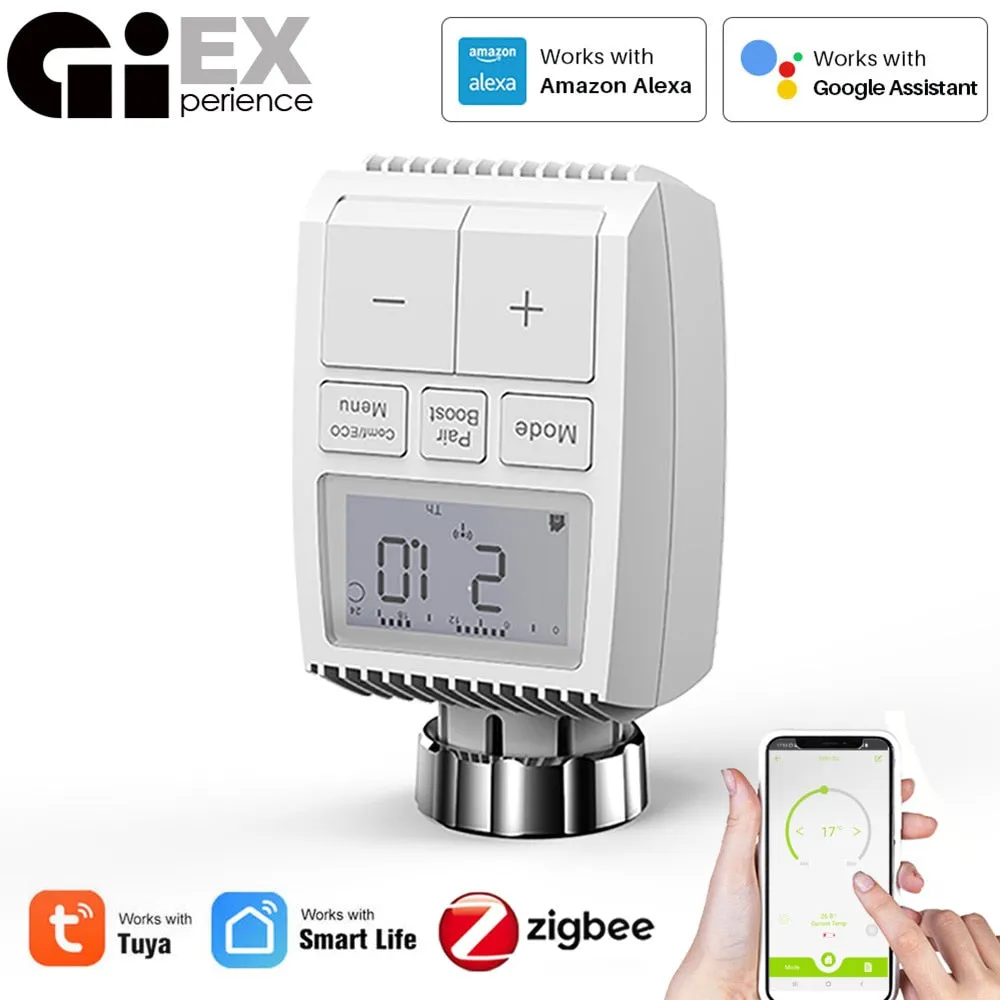

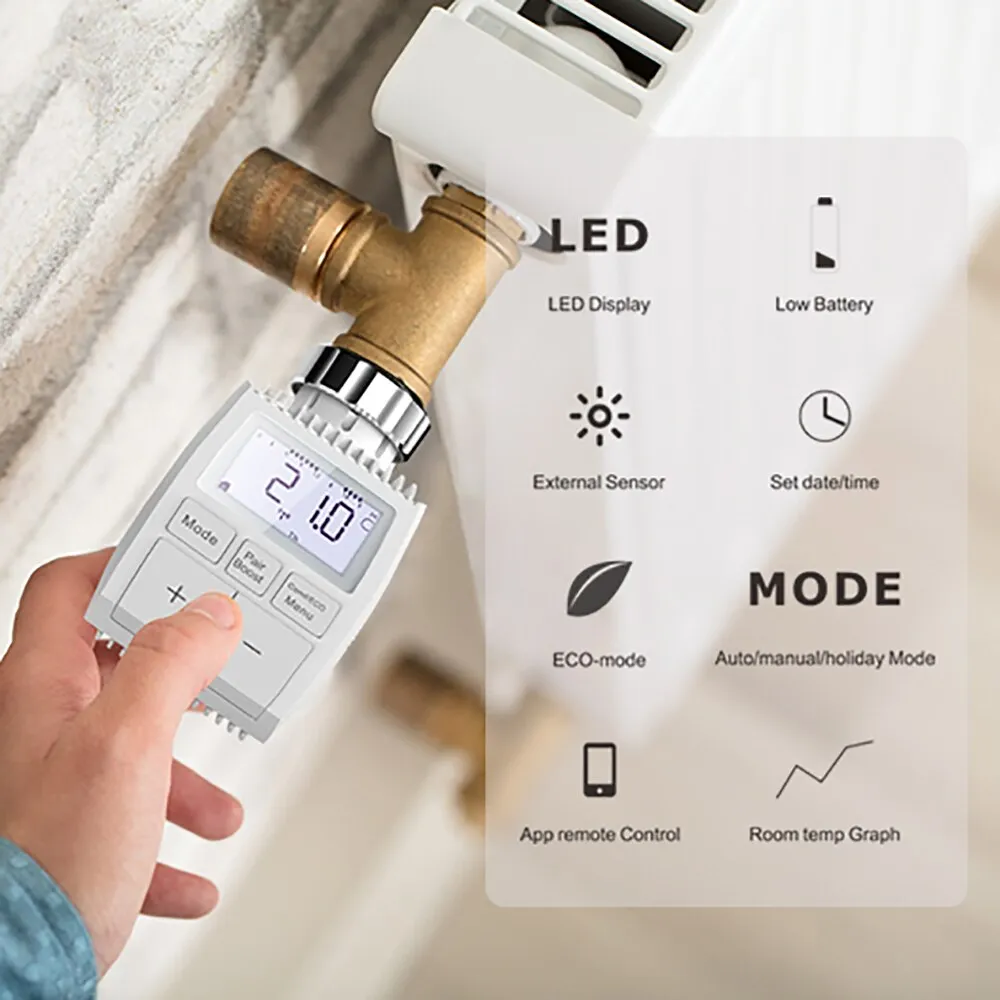

Product Features:1.Smart Tuya ZigBee Radiator Actuator Thermostat:New mini design with simple and clear LCD display screen on the body,the radiator thermostat is with LCD digital display screen and two sections of AA batteries powered,which is a special valve using cooperatively with heating radiator.Artificially set indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe.2.A Tuya ZigBee Wireless Gateway Hub is a Must : A ZigBee wireless hub is a must that connects to the valve many other ZigBee smart products and realizes the whole linkage of your smart home devices.Simply add your gateway to the App,then add your radiator actuator to your gateway in the App.3.Programmable Schedule with Weekly Programming Selection:Supports manual set up 5 2,6 1 and 7 days weekly schedule with 6 periods for option ,providing you with the maximum convenience for different situation and setting customized schedule for your house temperature.Holiday mode,automatic mode,boost mode available.Choose workday and rest day mode to meet your own mind.4.Voice and Remote Control for the Tuya ZigBee Wireless Gateway:Supports App remote control via your smart phone,together with the hands-free voice control via Alexa and Google Assistant after successfully connecting your valve to Tuya /Smart Life App on the basis of one Tuya ZigBee Wireless Gateway.5.Open Window Detection:When room temperature suddenly drop into temp. threshold,valve will close for 15 minutes.After that,if the room temp. is still lower than temp. Threshold,it will keep this mode.Besides,it's easy to read digital display with Celsius temperature.Full 2 Years Warranty,for All GIEX Smart Thermostat,60 Days Refund Guarantee,Your complete satisfaction is GIEX goal for all its customers.
Parameter:
Commercial name:Thermostat radiator valve
Device weight:190g
Device size:55.3*54*98.3mm
Letter Of Agreement:Zigbee 3.0
WIFI:2.4Ghz
Battery:2*1.5V LR6/mignon/AA
Battery Life:1.5-2.5 Years
Hub Communication Distance:60M
Temperature range:5℃-30℃
Degree of protection:lP20
Constant temperature tolerance:±0.7℃
Connection:M30x1.5mm
MAX travel:6mm
Working temperature:-10℃-40℃
Working environment:Indoor
Certification:CE/ROHS

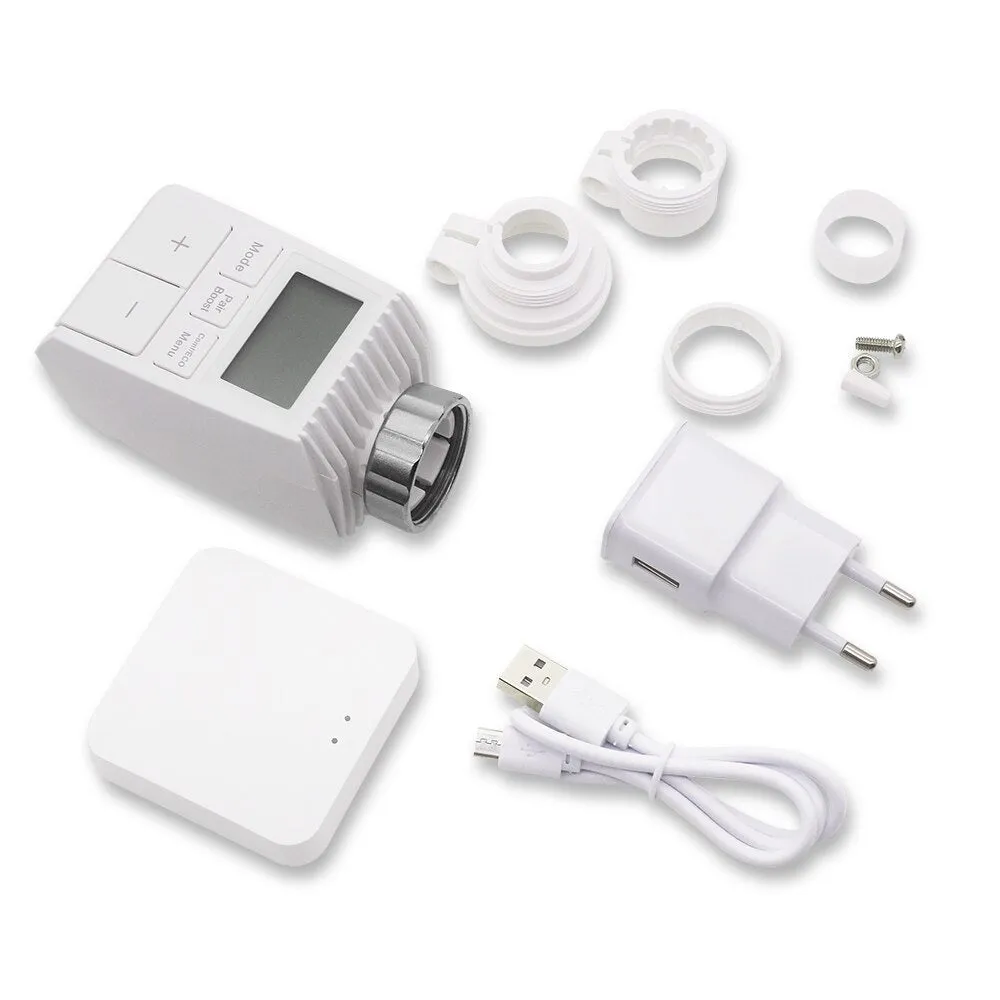

Package Listing:

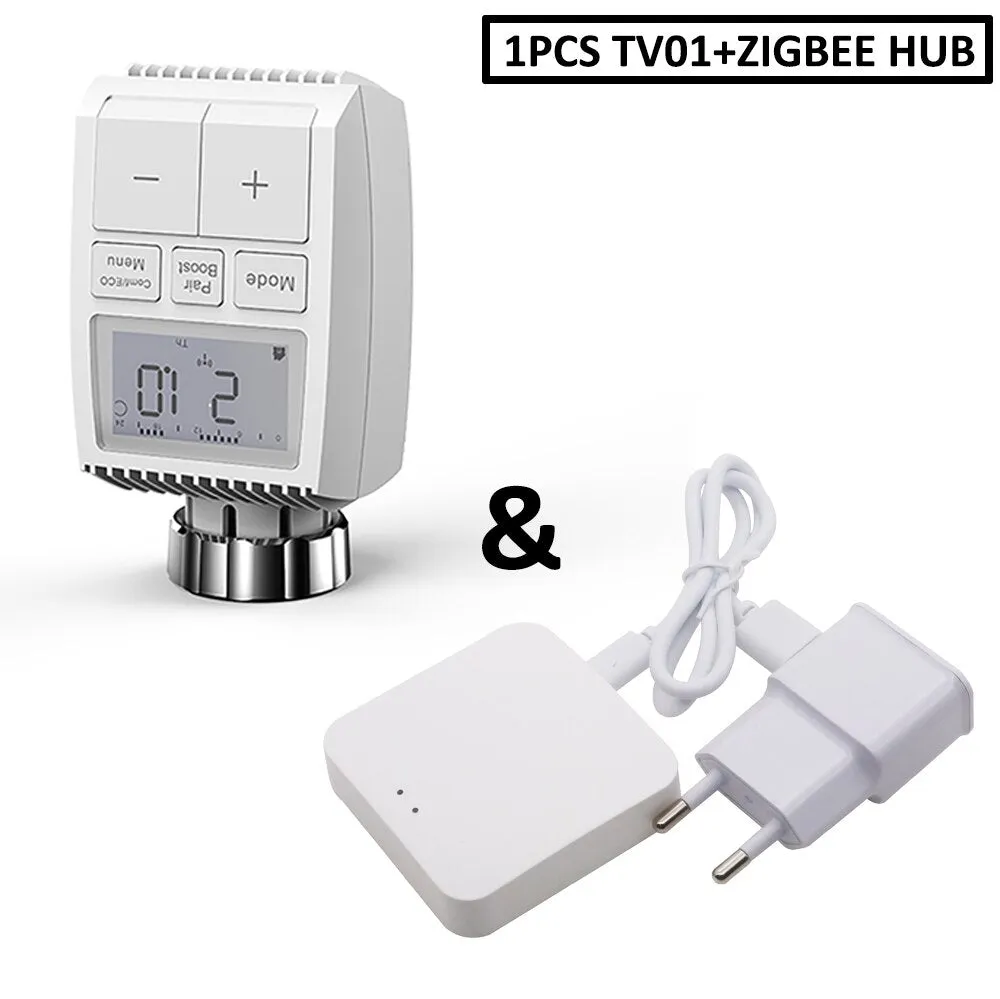

1 * Radiator Thermostat, 1 * Bag of Accessory, 1 * User Manual (PLEASE ALLOW 15-20 DAYS for DELIVERY)
Q&A:
Q:Can I use my own hub to connect with the valve?
A:No,this radiator thermostat can only be used with Tuya ZigBee wireless gateway hub,so we offer the set of the two for your to purchase.
Q:Can this thermostat be set to Fahrenheit display?
A:No,it can only be displayed with Celsius display.
Q:Can I program the schedule myself?
A:Yes,our thermostat is programmable.You are able to program your schedule freely.、
Q:Can I control the thermostat if I am not at home?
A:Yes,after successfully connecting it to the hub,then you are able to control your device on your smart phone App.
Q:Does this thermostat have a screen lock to prevent guests or kids from tampering with the settings?
A:Yes, it does. It has a fully locked mode that prevents any changes or misoperation by children.
Q: Is the battery included?
A: No, because of delivery limitation, the product is not equipped with battery.
Q:How does our thermostat radiator valve control the temperature in the room?
A:Combined with the collected ambient temperature and the target temperature set by the user, the water flow through the heat sink is changed by adjusting the valve opening and closing degree of the TRV to achieve the purpose of effectively adjusting the
Q:What is the temperature displayed on the screen of the TRV? Is it the temperature set by the user or the ambient temperature?
A:The temperature displayed on the screen of our TRV refers to the temperature set by the user.
Q:How to set the temperature and view the indoor ambient temperature？
A:1.There are two ways to set the temperature: (1) Manually press the /- key on the TRV （2） Use the mobile App 2.The ambient temperature needs to be checked after connecting the TRV to the mobile App
Q:When adjusting the temperature in the mobile app for the first time, sometimes it takes a few seconds for the TRV to respond.
A:It is normal, when the App is connected, the data(time/temperature,ect) will be re-checked every time, and it will enter the operable mode after execution is completed. If there is an abnormality, you need to wait for more than 60 seconds.
Q：The mobile App cannot find the TRV that enters the pairing state(Zigbee)
A:1.Check if the Wi-Fi is connected 2. Check if the TRV signal icon is flashing 3. Please perform the reset operation, press /- button for more than 3 seconds at the same time, and then press the confirm button(Menu button)
Q：The mobile App cannot find the TRV that enters the pairing state(Bluetoth)
A:1. Check if the Wi-Fi is connected 2. Check if the Bluetooth is turned on 3. Check if the TRV signal icon is flashing 4. Please perform the reset operation, press /- button for more than 3 seconds at the same time, and then press the confirm button(Menu button)
