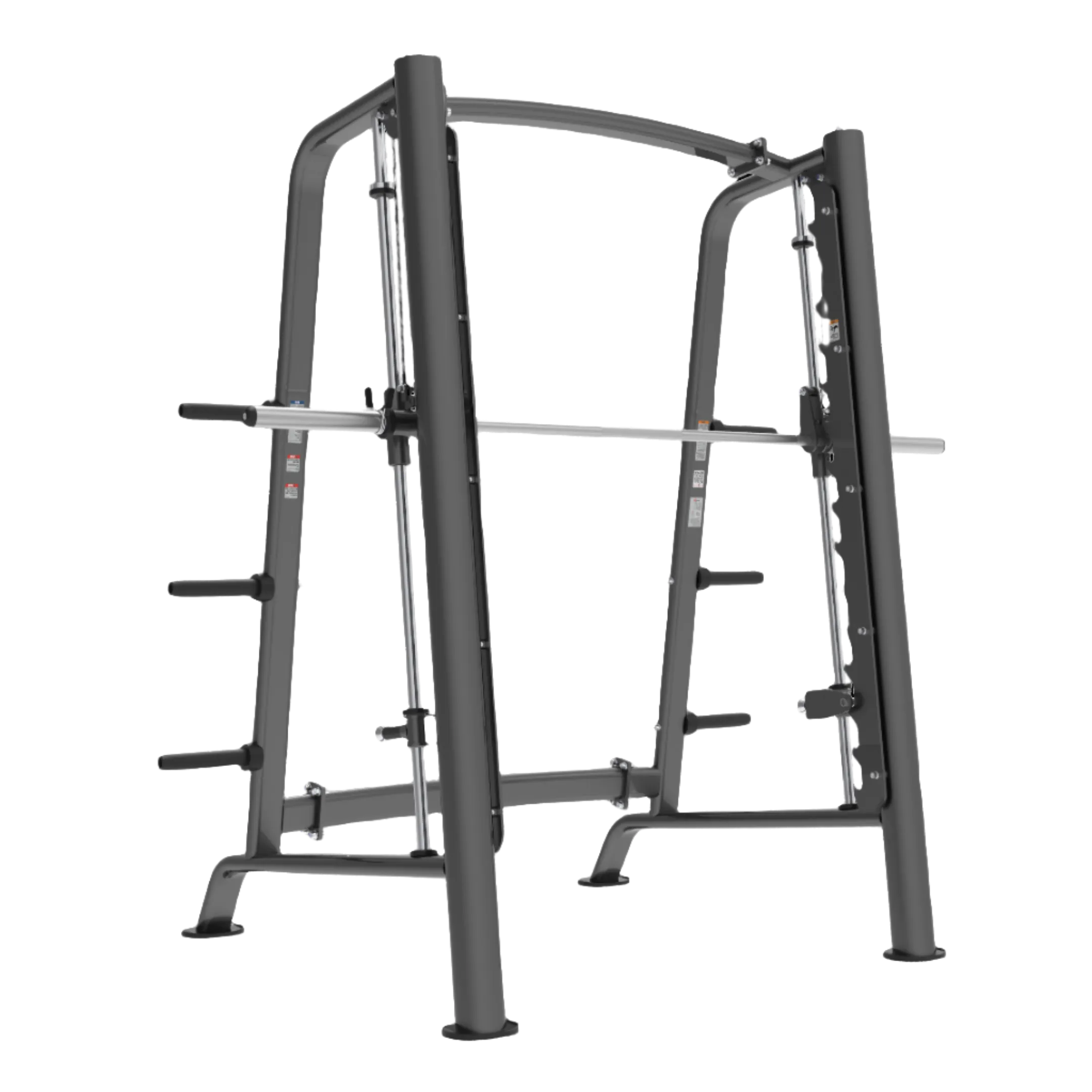

The Smith Machine from Arnold Series is a heavy duty commercial machine that has been built to last.
| Dimensions (mm) | 2200 * 1470 * 2300 |
| Machine Weight | 192kg |
| Product Code: | VER-ARN-024 |
| Commercial Warranty | COMMERCIAL WARRANTY* 10 YEARS: Structural main frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings and guide rods. 1 YEAR: Pull-pin components and rail wheels. 6 MONTHS: Upholstery, cables, finish and rubber grips. ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser. |
|---|---|
| Frame | Heavy duty 100mm x 50mm x 3mm thick oval steel frames with a combination of 50mm round tubing. |
| Cables | 3/16" USA-Made/Certified EXERFLEX PRO high performance cable. 4-1/2” and 3-1/2” diameter fiberglass reinforced nylon pulleys with sealed bearings enclosed in protective steel covers. |
| Padding | High density EMR Urethane foam padding with double-stitched upholstery (black) secured to 3/4” plywood backing. |
| Finish | Powder coat finish |
| Weight Stack | 90kg steel weight stacks. Steel weight stack enclosures with decorative built-in storage compartment cover |
| Other Specs | Sealed 50mm roller bearings and 25mm diameter solid steel axle encased in machined housing on all primary pivot points. 20mm precision ground, hard chrome finish, solid steel guide rods. Thermoplastic rubber handgrips secured with aluminum end caps for durability and improved feel. Protective rubber stabilizer feet with anchoring holes provided on all machines. |
| Product Code: | VER-ARN-024 |
